Globe Valve – Angle – Cast Iron – JIS 16K
Aboard ships for hot and cold water, fresh water, sea water, oil and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | GG-25 |
| BONNET | GG-25 |
| SEAT | SUS316 |
| DISC | SUS316 |
| STEM | SUS316 |
| Technical Specification | |
|---|---|
| MODEL | JIS F7310 - STOP TYPE JIS F7378 - SDNR TYPE |
| CONNECTION | JIS 16K |
| CERTIFICATION | 3.1 MILL CERTIFICATE |

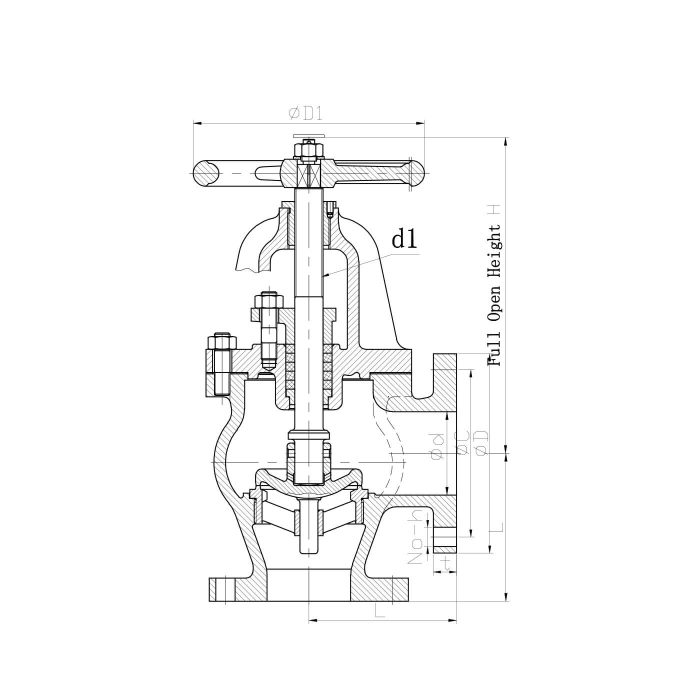

| Dimensions Specification | |
|---|---|
| L | FACE TO FACE |
| D | F.O.D |
| C | P.C.D |
| NO | NUMBER OF HOLES |
| H | DIAMETER OF HOLES |
| W | WEIGHT |
Dimension Table
| CODE STOP | CODE SDNR | DN | L | D | C | NO | h | W |
|---|---|---|---|---|---|---|---|---|
| 750271 | 751161 | 50 | 120 | 155 | 120 | 8 | 19 | 18 |
| 750272 | 751162 | 65 | 130 | 175 | 140 | 8 | 19 | 25 |
| 750273 | 751163 | 80 | 150 | 200 | 160 | 8 | 23 | 35.7 |
| 750274 | 751164 | 100 | 170 | 225 | 185 | 8 | 23 | 49.2 |
| 750275 | 751165 | 125 | 200 | 270 | 225 | 8 | 25 | 76.1 |
| 750276 | 751166 | 150 | 225 | 305 | 260 | 12 | 25 | 103 |
| 750277 | 751167 | 200 | 250 | 350 | 305 | 12 | 25 | 155 |
