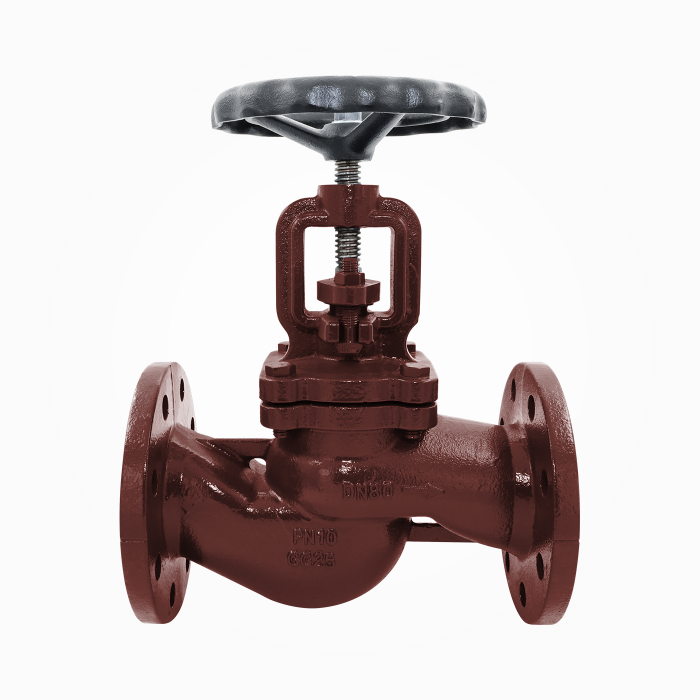

Globe Valve – Straight – Nodular Cast Iron – DIN PN10
Aboard ships for hot and cold water, fresh water, sea water, oil and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | GGG40.3 |
| BONNET | GGG40.3 |
| SEAT | BRONZE |
| DISC | BRONZE |
| STEM | BRASS |
| Technical Specification | |
|---|---|
| MODEL | ECO. 263 (STOP TYPE) ECO. 263-NR (SDNR TYPE) |
| CONNECTION | DIN PN10 |
| CERTIFICATION | DNV-GL CLASS CERTIFICATE |
| Dimensions Specification | |
|---|---|
| L | FACE TO FACE |
| D | F.O.D |
| C | P.C.D |
| NO | NUMBER OF HOLES |
| H | DIAMETER OF HOLES |
| W | WEIGHT |
Dimension Table
| CODE STOP | CODE SDNR | DN | L | D | C | NO | h | W |
|---|---|---|---|---|---|---|---|---|
| 755401 | 755401-NR | 15 | 130 | 95 | 65 | 4 | 14 | 4.5 |
| 755402 | 755402-NR | 20 | 150 | 105 | 75 | 4 | 14 | 5.5 |
| 755403 | 755403-NR | 25 | 160 | 115 | 85 | 4 | 14 | 8.5 |
| 755404 | 755404-NR | 32 | 180 | 140 | 100 | 4 | 18 | 9 |
| 755405 | 755405-NR | 40 | 200 | 150 | 110 | 4 | 18 | 12.5 |
| 755406 | 755406-NR | 50 | 230 | 165 | 125 | 4 | 18 | 15.5 |
| 755407 | 755407-NR | 65 | 290 | 185 | 145 | 4 | 18 | 22 |
| 755408 | 755408-NR | 80 | 310 | 200 | 160 | 8 | 18 | 27.5 |
| 755409 | 755409-NR | 100 | 350 | 220 | 180 | 8 | 18 | 38.5 |
| 755410 | 755410-NR | 125 | 400 | 250 | 210 | 8 | 18 | 60 |
| 755411 | 755411-NR | 150 | 480 | 285 | 240 | 8 | 22 | 83 |
| 755413 | 755413-NR | 200 | 600 | 340 | 295 | 8 | 22 | 127 |
| 755414 | 755414-NR | 250 | 730 | 395 | 350 | 12 | 22 | 255 |
| 755415 | 755415-NR | 300 | 850 | 445 | 400 | 12 | 22 | 355 |
