Hose Valve – Angle – Bronze – JIS 5K

Aboard ships for hot and cold water, fresh water, sea water, oil and steam.

Category:
Brand: Adamar
Material Specification
BODYBronze
BONNETBronze
SEATBronze
DISCBronze
STEMBrass
Technical Specification
MODELJIS F7334
COUPLINGW/NAKAJIMA
CONNECTIONJIS 5K
CERTIFICATION3.1 MILL CERTIFICATE

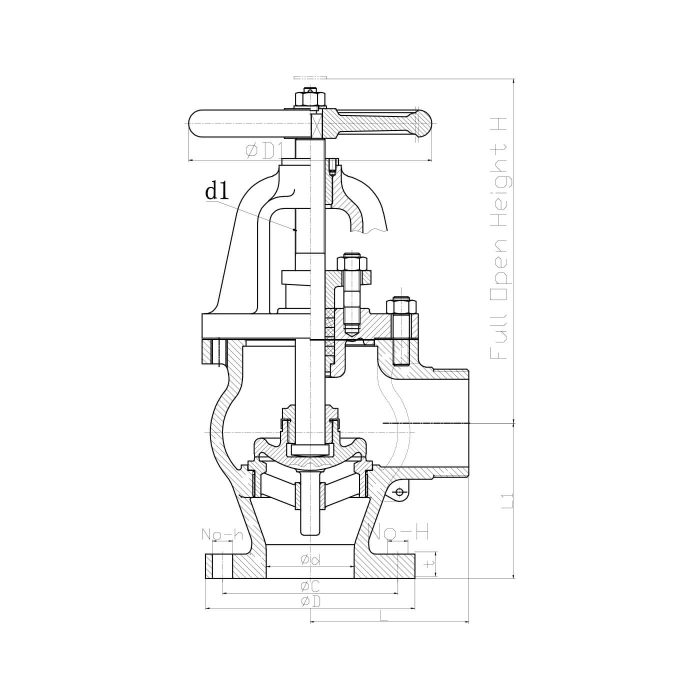

Dimensions Specification
LFACE TO FACE
DF.O.D
CP.C.D
NONUMBER OF HOLES
HDIAMETER OF HOLES
WWEIGHT

Dimension Table

CODE DN L D C NO h W
751706 15 68 80 60 4 12 2.41
751708 25 78 85 65 4 12 3.44
751713 40 123.5 95 75 4 12 5.91
751721 50 154.8 115 90 4 15 11
