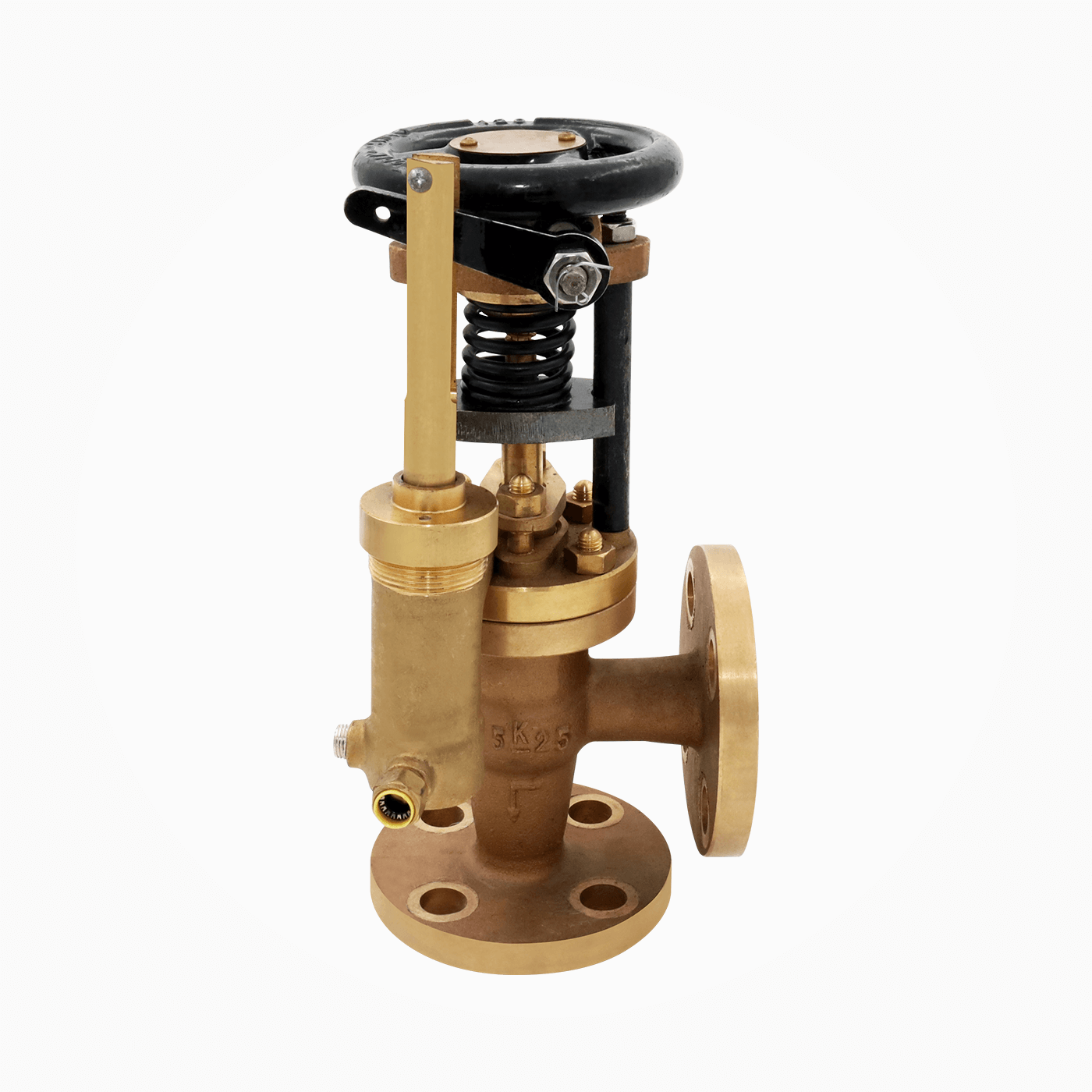

Quick Closing Valve – Angle – Bronze – JIS 5K
Aboard ships for hot and cold water, fresh water, sea water, oil and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | BRONZE |
| BONNET | BRONZE |
| SEAT | BRONZE |
| DISC | BRONZE |
| STEM | BRASS |
| Technical Specification | |
|---|---|
| MODEL | JIS F7399 |
| CONNECTION | JIS 5K |
| CERTIFICATION | DNV-GL CLASS CERTIFICATE |

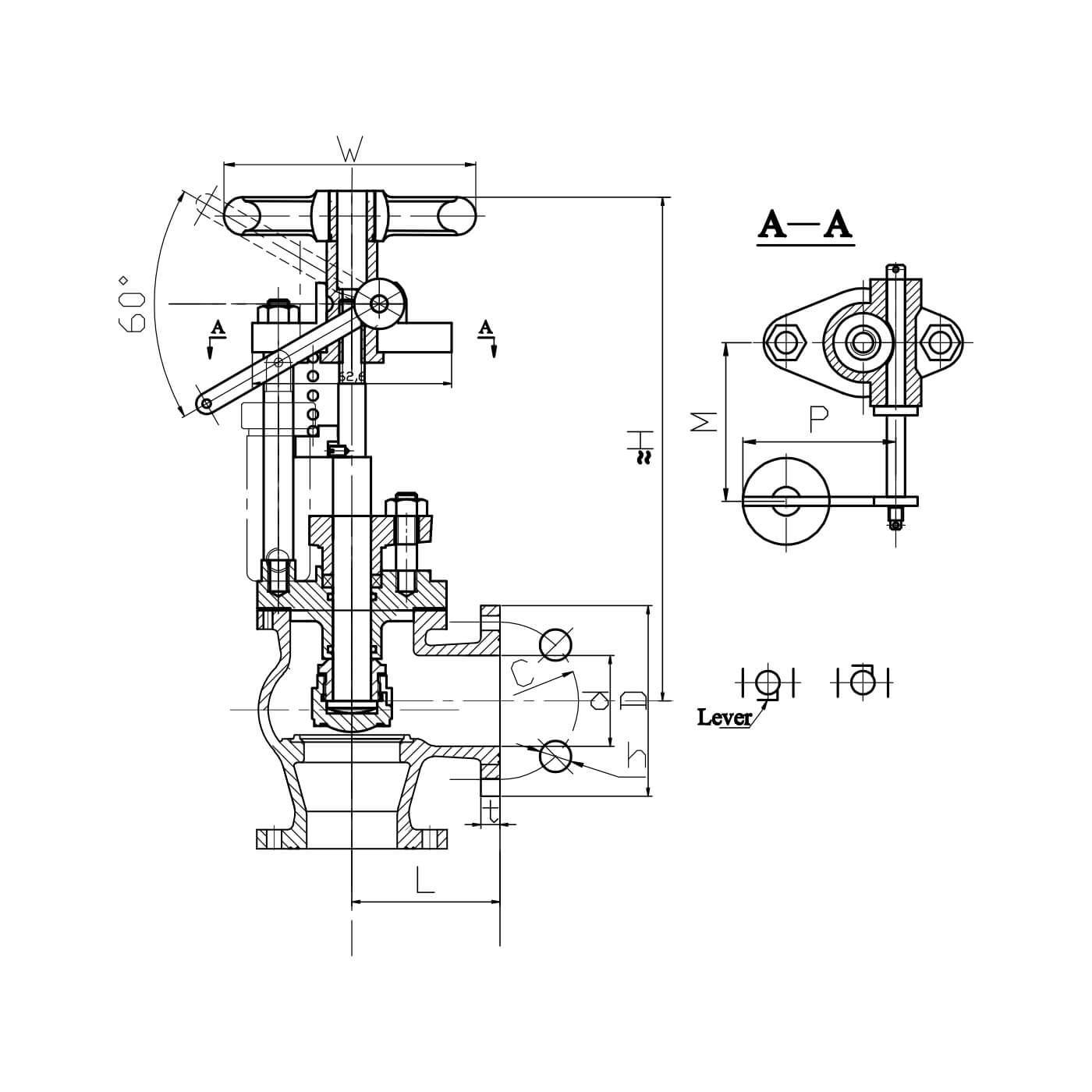

| Dimensions Specification | |
|---|---|
| L | FACE TO FACE |
| D | F.O.D |
| C | P.C.D |
| NO | NUMBER OF HOLES |
| H | DIAMETER OF HOLES |
| W | WEIGHT |
Dimension Table
| CODE | DN | L | D | C | NO | h | W |
|---|---|---|---|---|---|---|---|
| 874521-15A | 15 | 55 | 80 | 60 | 4 | 12 | 6.9 |
| 874521-20A | 20 | 60 | 85 | 65 | 4 | 12 | 7.1 |
| 874521 | 25 | 65 | 95 | 75 | 4 | 12 | 7.4 |
| 874521-32A | 32 | 80 | 115 | 90 | 4 | 15 | 11.4 |
| 874522 | 40 | 85 | 120 | 95 | 4 | 15 | 11.8 |
