Butterfly Valve – Wafer – Concentric – BARE
Aboard ships for hot and cold water, fresh water, sea water, oil, and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | GG25 |
| SEAT | NBR |
| DISC | ALBC |
| STEM | SUS316 |
| Technical Specification | |
|---|---|
| MODEL | ECO. 5720 |
| CONNECTION | JIS 5K & JIS 10K & DIN PN10 & DIN PN16 |
| ACTUATION | BARE SHAFT |
| CERTIFICATION | 3.1 MILL CERTIFICATE |

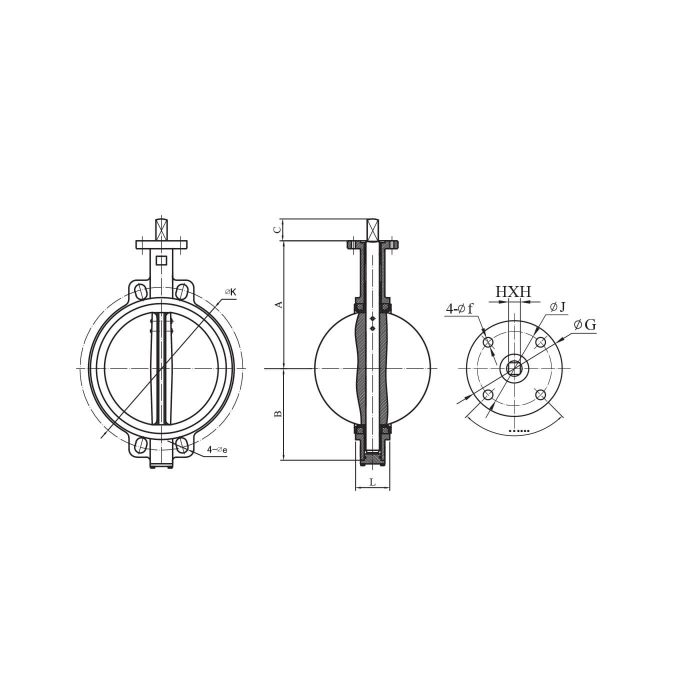

| Dimensions Specification | |
|---|---|
| L | FACE TO FACE |
| C | P.C.D |
| NO | NUMBER OF HOLES |
| H | DIAMETER OF HOLES |
| W | WEIGHT |
| Top Flange | |
|---|---|
| d | OUTSIDE DIAMETER |
| c | PCD |
| no | NUMBER OF HOLES |
| h2 | DIAMETER OF HOLES |
| H | SHAFT |
| T-FLG | TOP FLANGE STANDARD |
Dimension Table
| TOP FLANGE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | DN | L | NO | h | W | d | c | no | h2 | H | T-FLG |
| 756331 | 50 | 43 | 2 | 19 | 2.7 | 90 | 70 | 4 | 9 | 9 | F07 |
| 756332 | 65 | 46 | 2 | 19 | 3.5 | 90 | 70 | 4 | 9 | 9 | F07 |
| 756333 | 80 | 46 | 4 | 19 | 3.9 | 90 | 70 | 4 | 9 | 9 | F07 |
| 756334 | 100 | 52 | 4 | 19 | 5.1 | 90 | 70 | 4 | 9 | 11 | F07 |
| 756335 | 125 | 56 | 4 | 19 | 7.7 | 90 | 70 | 4 | 9 | 14 | F07 |
| 756336 | 150 | 56 | 4 | 23 | 9.2 | 90 | 70 | 4 | 9 | 14 | F07 |
| 756337 | 200 | 60 | 4 | 23 | 15 | 125 | 102 | 4 | 12 | 17 | F10 |
| 756338 | 250 | 68 | 4 | 25 | 25 | 125 | 102 | 4 | 12 | 22 | F10 |
| 756339 | 300 | 78 | 4 | 25 | 34 | 150 | 125 | 4 | 14 | 22 | F12 |
| 756340 | 350 | 78 | 4 | 25 | 50 | 150 | 125 | 4 | 14 | 22 | F12 |
| 756341 | 400 | 102 | 4 | 27 | 67 | 150 | 125 | 4 | 14 | 27 | F12 |
| 756342 | 450 | 114 | 4 | 27 | 100 | 210 | 165 | 4 | 22 | 27 | F16 |
| 756343 | 500 | 127 | 4 | 27 | 135 | 210 | 165 | 4 | 22 | 36 | F16 |
| 756344 | 600 | 154 | 4 | 33 | 180 | 210 | 165 | 4 | 22 | 36 | F16 |
