Butterfly Valve – Wafer – Double Eccentric – HWP–A73
High-Performance Wafer type Rubber Seat Butterfly Valves are without drill. Can be drilled as above flange connections.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | A351 CF8 |
| DISC | A351 CF8 |
| STEM | 17-4PHSS |
| SEAT | P287 |
| Technical Specification | |
|---|---|
| MODEL | HWP-A73 |
| CONNECTION | JIS 10K & JIS 16K & JIS 20K & DIN PN16 & DIN PN25 & DIN PN40 |

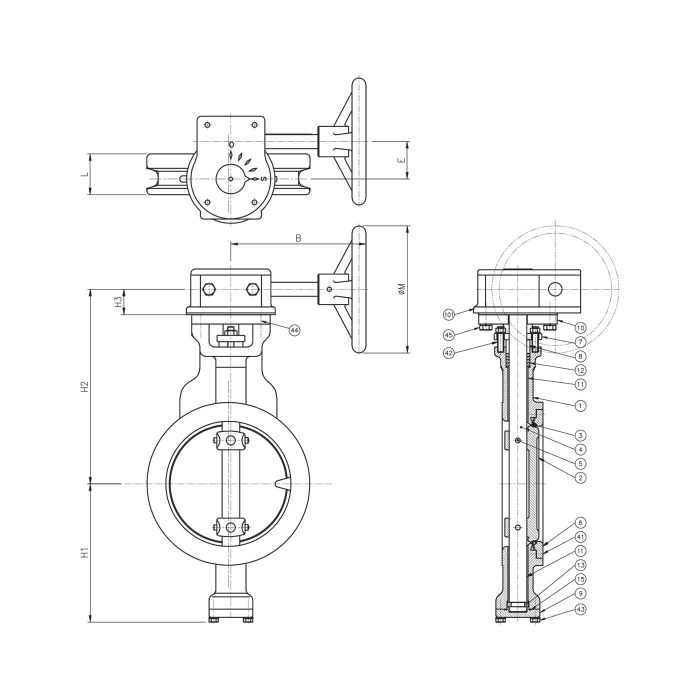

Dimension Table
| SIZE | d | L | H | H1 | H2 | H3 | STEM | TOP FLANGE | WEIGHT (KG) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INCH | MM | D | KEY SIZE | SQUARE | TYPE | N | M | N-Z | ||||||||
| SQ | H4 | |||||||||||||||
| 2" | 50 | 50 | 43 | 218,5 | 79 | 126 | 13,5 | X | X | 11 | 13,5 | F05 | 50 | 70 | 4-9 | 3 |
| 2.5" | 65 | 65 | 46 | 226,5 | 87 | 126 | 13,5 | X | X | 11 | 13,5 | F05 | 50 | 70 | 4-9 | 4 |
| 3" | 80 | 80 | 48 | 262,5 | 100 | 145 | 17,5 | X | X | 11 | 17,5 | F07 | 70 | 90 | 4-9 | 5 |
| 4" | 100 | 100 | 54 | 311,5 | 124 | 170 | 17,5 | X | X | 14 | 17,5 | F07 | 70 | 90 | 4-9 | 6 |
| 5" | 125 | 125 | 57 | 346,5 | 144 | 185 | 17,5 | X | X | 14 | 17,5 | F07 | 70 | 90 | 4-9 | 9 |
| 6" | 150 | 150 | 57 | 371,5 | 150 | 203 | 18,5 | X | X | 17 | 18,5 | F10 | 102 | 125 | 4-12 | 12 |
| 8" | 200 | 200 | 64 | 449,5 | 186 | 239 | 24,5 | X | X | 22 | 24,5 | F10 | 102 | 125 | 4-12 | 19 |
| 10" | 250 | 250 | 71 | 539,5 | 240 | 275 | 24,5 | X | X | 27 | 24,5 | F10 | 102 | 125 | 4-12 | 33 |
| 12" | 300 | 300 | 81 | 588 | 251 | 307 | 30 | X | X | 27 | 30 | F12 | 125 | 140 | 4-12 | 42 |
| 14" | 350 | 350 | 91 | 661 | 294 | 337 | 30 | X | X | 36 | 30 | F12 | 125 | 140 | 4-12 | 61 |
| 16" | 400 | 400 | 102 | 730 | 332 | 368 | 30 | X | X | 46 | 30 | F14 | 140 | 175 | 4-18 | 88 |
