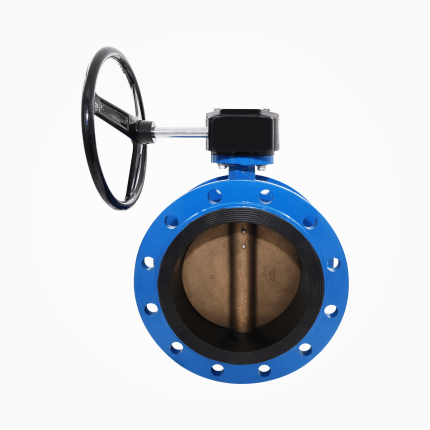

Butterfly Valve – Flanged – Concentric – GRB – DIN PN10

Aboard ships for hot and cold water, fresh water, sea water, oil and steam.

Datasheet Download
Request An Offer

    Firstname: (*)
    Lastname: (*)
    Company:
    Vessel Name: (*)
    E-mail: (*)
    Phone: (*)
    When do you need the goods latest? (*)
    Notes:
    Category:
    Brand: Adamar
    Material Specification
    BODYGGG.40
    SEATNBR
    DISCALBC
    STEMSUS316
    Technical Specification
    MODELSERIES 53
    CONNECTIONDIN PN10
    ACTUATIONWORM GEAR ACTUATOR
    CERTIFICATIONDNV-GL CLASS CERTIFICATE
    Dimensions Specification
    LFACE TO FACE
    CP.C.D
    NONUMBER OF HOLES
    HDIAMETER OF HOLES
    WWEIGHT
    Top Flange
    dOUTSIDE DIAMETER
    cPCD
    noNUMBER OF HOLES
    h2DIAMETER OF HOLES
    HSHAFT
    T-FLGTOP FLANGE STANDARD

    Dimension Table

    TOP FLANGE
    CODE DN L C NO h W d c no h2 H T-FLG
    754581-G 50 108 125 4 18 4.1 90 70 4 9 9 F07
    754582-G 65 112 145 4 18 5.5 90 70 4 9 9 F07
    754583-G 80 114 160 8 18 6.8 90 70 4 9 9 F07
    754584-G 100 127 180 8 18 8.6 90 70 4 9 11 F07
    754585-G 125 140 210 8 18 10.5 90 70 4 9 14 F07
    754586-G 150 140 240 8 22 12.5 90 70 4 9 14 F07
    754587 200 152 295 8 22 21.4 125 102 4 12 17 F10
    754588 250 165 350 12 22 29.3 125 102 4 12 22 F10
    754589 300 178 400 12 22 44 150 125 4 14 22 F12
    754590 350 190 460 16 22 62.2 150 125 4 14 22 F12
    754591 400 216 515 16 26 112 150 125 4 14 27 F12
    754592 450 222 565 20 26 153 210 165 4 22 27 F16
    754593 500 229 620 20 26 150 210 165 4 22 36 F16
    754594 600 267 725 20 30 200 210 165 4 22 36 F16
