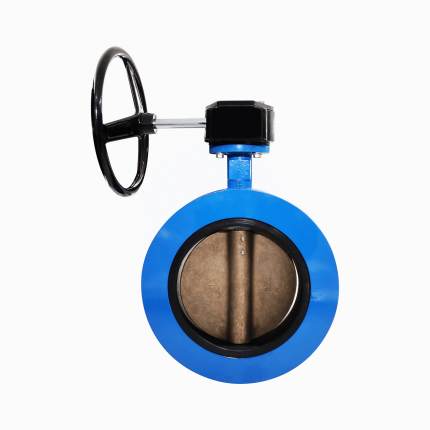

Butterfly Valve – Lug – Concentric – GRB – JIS 10K
Aboard ships for hot and cold water, fresh water, sea water, oil and steam.
Please note!
Please fill in the form below so we can send you our best offer right away!
Brand:
| Material Specification | |
|---|---|
| BODY | GG-25 & GGG.40 |
| SEAT | NBR |
| DISC | ALBC |
| STEM | SUS316 |
| Technical Specification | |
|---|---|
| MODEL | 704G-2U |
| CONNECTION | JIS 10K |
| ACTUATION | WORM GEAR ACTUATOR |
| CERTIFICATION | 3.1 MILL DNV-GL CLASS CERTIFICATE |
| Dimensions Specification | |
|---|---|
| L | FACE TO FACE |
| C | P.C.D |
| NO | NUMBER OF HOLES |
| H | DIAMETER OF HOLES |
| W | WEIGHT |
| Top Flange | |
|---|---|
| d | OUTSIDE DIAMETER |
| c | PCD |
| no | NUMBER OF HOLES |
| h2 | DIAMETER OF HOLES |
| H | SHAFT |
| T-FLG | TOP FLANGE STANDARD |
Dimension Table
| TOP FLANGE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CODE | DN | L | C | NO | h | W | d | c | no | h2 | H | T-FLG |
| 752321 | 40 | 35 | 105 | 4 | M16 | 2.25 | 90 | 70 | 4 | 9 | 9 | F07 |
| 752322 | 50 | 43 | 120 | 4 | M16 | 4.8 | 90 | 70 | 4 | 9 | 9 | F07 |
| 752323 | 65 | 46 | 140 | 4 | M16 | 5.8 | 90 | 70 | 4 | 9 | 9 | F07 |
| 752324 | 80 | 46 | 150 | 8 | M16 | 6.3 | 90 | 70 | 4 | 9 | 9 | F07 |
| 752325 | 100 | 52 | 175 | 8 | M16 | 7.3 | 90 | 70 | 4 | 9 | 11 | F07 |
| 752326 | 125 | 56 | 210 | 8 | M20 | 12.2 | 90 | 70 | 4 | 9 | 14 | F07 |
| 752327 | 150 | 56 | 240 | 8 | M20 | 16 | 90 | 70 | 4 | 9 | 14 | F07 |
| 752328 | 200 | 60 | 290 | 12 | M20 | 23 | 125 | 102 | 4 | 12 | 17 | F10 |
| 752329 | 250 | 68 | 355 | 12 | M22 | 32 | 125 | 102 | 4 | 12 | 22 | F10 |
| 752330 | 300 | 78 | 400 | 16 | M22 | 45 | 150 | 125 | 4 | 14 | 22 | F12 |
| 752331 | 350 | 78 | 445 | 16 | M22 | 63 | 150 | 125 | 4 | 14 | 22 | F12 |
| 752332 | 400 | 102 | 510 | 16 | M24 | 91 | 150 | 125 | 4 | 14 | 27 | F12 |
| 752333 | 450 | 114 | 565 | 20 | M24 | 115 | 210 | 165 | 4 | 22 | 27 | F16 |
